ABS - Centrifugal Flow Door Air Barrier Fashion Design Use For Coffee Shop, Restaurant, Hotel, Shopping Mall
Plastic air curtain with exquisite appearance / low noise suitable for your home and office
Door air curtain plastic appearance with special and elegant design
With filter and easy cleaning
Four control models to meet different clients needs and loactions
Voltage/Frequency 220-240V/50Hz , or 110V/60Hz , 110V/50Hz , 220V/60Hz are all available
| Model | Input Power (W) | Air
Velocity (m/s) | Air Volume (m³/h)/CFM | Noise (dB) | Unit Size | Mounting Height |
| H | M | L | H | M | L | H | M | L | H | M | L | (mm) | (m) |
| FM-3509QS-L/Y(X) | 200 | 180 | 150 | 15.5 | 14.3 | 12.5 | 1080/635 | 996/586 | 870/512 | ≤44 | ≤42 | ≤41 | 900x230x220 | 3-3.5 |
| FM-3512QS-L/Y(X) | 250 | 225 | 185 | 15.5 | 14.3 | 12.5 | 1450/853 | 1337/786 | 1168/687 | ≤45 | ≤43 | ≤42 | 1200x230x220 | 3-3.5 |
| FM-3515QS-L/Y(X) | 325 | 290 | 240 | 15.5 | 14.3 | 12.5 | 1800/1059 | 1600/941 | 1398/822 | ≤48 | ≤46 | ≤44 | 1500x230x220 | 3-3.5 |
| FM-4509QS-L/(Y)(X) | 350 | 260 | 200 | 19 | 16 | 12.5 | 1320/776 | 1100/647 | 860/506 | ≤46 | ≤44 | ≤42 | 900x230x220 | 4-4.5 |
| FM-4512QS-L/(Y)(X) | 440 | 320 | 225 | 19 | 16 | 12.5 | 1770/1041 | 1455/856 | 1150/676 | ≤47 | ≤45 | ≤43 | 1200x230x220 | 4-4.5 |
| FM-4515QS-L/(Y)(X) | 575 | 435 | 330 | 19 | 16 | 12.5 | 2200/1294 | 1850/1088 | 1450/853 | ≤50 | ≤47 | ≤45 | 1500x230x220 | 4-4.5 |
| FM-5509QS-L/(Y)(X) | 440 | 325 | 250 | 22 | 18.5 | 14.5 | 1520/894 | 1270/747 | 1000/588 | ≤52 | ≤50 | ≤47 | 900x230x220 | 5-5.5 |
| FM-5512QS-L/(Y)(X) | 530 | 385 | 270 | 22 | 18.5 | 14.5 | 2027/1192 | 1670/1044 | 1330/782 | ≤54 | ≤52 | ≤50 | 1200x230x220 | 5-5.5 |
| FM-5515QS-L/(Y)(X) | 710 | 535 | 405 | 22 | 18.5 | 14.5 | 2543/1496 | 2135/1256 | 1680/988 | ≤55 | ≤53 | ≤51 | 1500x230x220 | 5-5.5 |
Door Air Barrier suitable for many kinds of places
Mounting height for 3 m - 5.5 m
Factories / Shopping Mall / Warehouse / Hotels / Super market so on

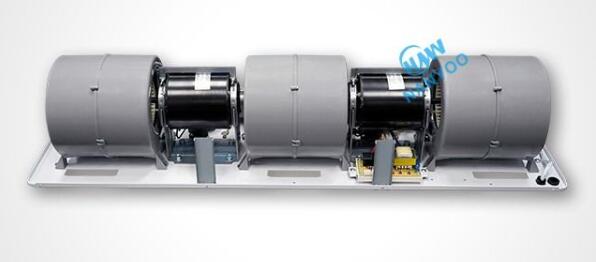

Motor : Mute Centrifugal - Flow wheel
Higher air pressure , Stronger air velocity, Lower noise
Working principle : SAVING 90% ENERGY
Door Air Curtain also known as Air door , Air Barrier , widely used in Factories / Shops / Restaurants / Pharmacies
Cold storage / Hotels / Hospitals / Airports / Stations and other environments and all air-conditioned place
Function Use the blower to generate a powerful airflow , effectively keep the indoor air clean , prevent air circulating Indoor
and Outdoor air , reduce energy consumption , prevent the intrusion of dust , insects and harmful gases,
and provide a comfortable working , shopping and leisure environment.
Product Specification
Company Profile
Foshan Nanhai Nanyang Electric Appliance& Motor Co.,Ltd (NANYOO)
NANYOO was set up in March 1987. Over more than three decades of development since its founded, it has become a professional scientific and technological enterprise which specializes in the research and development, production and sales of air curtain, ventilator and fresh air ventilation products.
NANYOO has a large-scale processing and testing equipment more than 100 sets. The company has passed the iso9001:2000 international quality system management certification, occupational health and safety management system certification, national compulsory certification CCC certification. Also, we have the international certification like CE, CB, SASO and ROHS environmental protection report.
