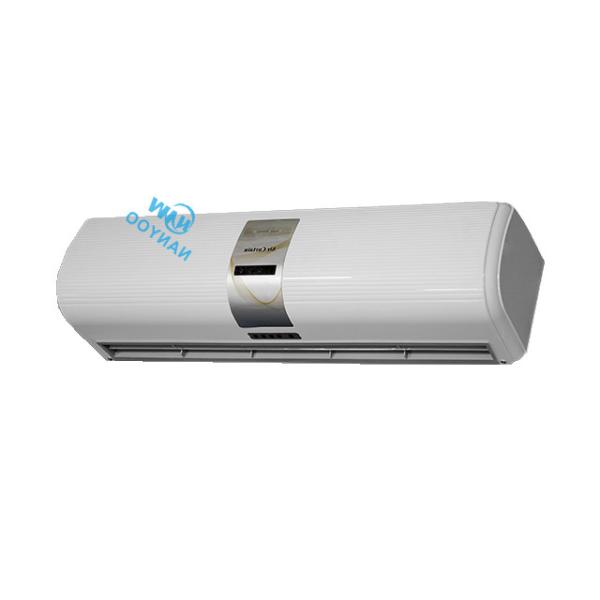

Wall Mount Copper Motor Centrifugal Flow Door Air Barrier For Office
30 years of experience in motor development and manufacturing
Delicate motor , Strong wind volume
Power is enough , Strong torsional force , High speed , Ensure strong power
Exquisite workmanship , Make sure that it is steady and noiseless for a long time service
Voltage/Frequency 220-240V/50Hz , or 110V/60Hz , 110V/50Hz , 220V/60Hz are all available
| Model | Input Power (W) | Air
Velocity (m/s) | Air Volume (m³/h)/CFM | Noise (dB) | Unit Size | Mounting Height |
| H | M | L | H | M | L | H | M | L | H | M | L | (mm) | (m) |
| FM-3509QS-L/Y(X) | 200 | 180 | 150 | 15.5 | 14.3 | 12.5 | 1080/635 | 996/586 | 870/512 | ≤44 | ≤42 | ≤41 | 900x230x220 | 3-3.5 |
| FM-3512QS-L/Y(X) | 250 | 225 | 185 | 15.5 | 14.3 | 12.5 | 1450/853 | 1337/786 | 1168/687 | ≤45 | ≤43 | ≤42 | 1200x230x220 | 3-3.5 |
| FM-3515QS-L/Y(X) | 325 | 290 | 240 | 15.5 | 14.3 | 12.5 | 1800/1059 | 1600/941 | 1398/822 | ≤48 | ≤46 | ≤44 | 1500x230x220 | 3-3.5 |
| FM-4509QS-L/(Y)(X) | 350 | 260 | 200 | 19 | 16 | 12.5 | 1320/776 | 1100/647 | 860/506 | ≤46 | ≤44 | ≤42 | 900x230x220 | 4-4.5 |
| FM-4512QS-L/(Y)(X) | 440 | 320 | 225 | 19 | 16 | 12.5 | 1770/1041 | 1455/856 | 1150/676 | ≤47 | ≤45 | ≤43 | 1200x230x220 | 4-4.5 |
| FM-4515QS-L/(Y)(X) | 575 | 435 | 330 | 19 | 16 | 12.5 | 2200/1294 | 1850/1088 | 1450/853 | ≤50 | ≤47 | ≤45 | 1500x230x220 | 4-4.5 |
| FM-5509QS-L/(Y)(X) | 440 | 325 | 250 | 22 | 18.5 | 14.5 | 1520/894 | 1270/747 | 1000/588 | ≤52 | ≤50 | ≤47 | 900x230x220 | 5-5.5 |
| FM-5512QS-L/(Y)(X) | 530 | 385 | 270 | 22 | 18.5 | 14.5 | 2027/1192 | 1670/1044 | 1330/782 | ≤54 | ≤52 | ≤50 | 1200x230x220 | 5-5.5 |
| FM-5515QS-L/(Y)(X) | 710 | 535 | 405 | 22 | 18.5 | 14.5 | 2543/1496 | 2135/1256 | 1680/988 | ≤55 | ≤53 | ≤51 | 1500x230x220 | 5-5.5 |
Plastic air curtain with exquisite appearance / low noise suitable for your home and office
Door air curtain plastic appearance with special and elegant design
With filter and easy cleaning
Four control models to meet different clients needs and loactions
Door Air Barrier suitable for many kinds of places
Mounting height for 3 m - 5.5 m
Factories / Shopping Mall / Warehouse / Hotels / Super market and so on
Working principle : SAVING 90% ENERGY
Door Air Curtain also known as Air door, Air Barrier ,
widely used in Factories / Shops / Restaurants / Pharmacies
Cold storage / Hotels / Hospitals / Airports / Stations and other environments and all air-conditioned place
Function Use the blower to generate a powerful airflow, effectively keep the indoor air clean,
prevent air circulating Indoor and Outdoor air , reduce energy consumption , prevent the intrusion of dust,
insects and harmful gases, and provide a comfortable working, shopping and leisure environment.
What is the main functions of Air Curtain?
1. Energy conservation
2. Isolate the smell
3. Dust-proof, insect prevention
How to choose suitable air curtain?
There are many factors that must be taken into account when selecting an air curtain,
some of which are listed below:
1. Door height and width
2. Air curtain size
3. Noise level
4. Door structure
5. Power consumption
6. External wind
7. Air curtain design and appearance
8. Building static pressure
9. Ambient temperature
